We continue to expand the list of PSUs tested by mass technique. On turn three 550-watt device in various price categories.

Models Cooler Master G550M and Chieftec BPS-550C2 certified under the standard 80 Plus Bronze. Both units are of very high power characteristics and implemented in a modular scheme. Thanks to our partner – company Regard, planned an interesting direct confrontation. In addition, we have tested a number of “bronze” BP this power, some of whom are very successful – beginners will have to fight with them.

Cooler Master V550 – the unit of a higher class, it is certified according to the standard 80 Plus Gold. For him, we also find a direct competitor. In addition, the BP claims to leadership in the overall group. Proceed to a visual inspection.

Test participants

Let’s start with the youngest models Cooler Master, certified under the standard 80 Plus Bronze.

Review of Cooler Master G550M (RS-550-AMAA-B1)

The unit comes in a cardboard box of medium size: 265 x 195 x 110 mm. It is decorated similarly packaged Cooler Master B600 ver.2 (we looked at it recently) – the main colors are black and white.

Testing three power supply 550 W: Cooler Master G550M, Cooler Master V550 and Chieftec BPS-550C2

Live – at the appropriate level: on the box is a short description of the product in various languages, the table features, and some pictures.

Since reliability is also all right: the PSU is placed into a special form of soft cardboard, papier-mache-like cords rolled into tight bundles and laid in separate packages.

Scope of supply includes instructions, power cord and mounting screws. Here everything is familiar – a set of typical for most power supplies, regardless of the price range (only sometimes added to it the plastic cable ties).

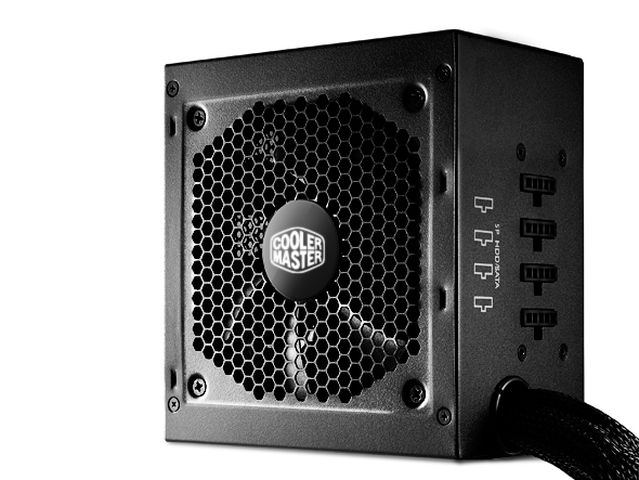

Take a look at the device itself. In appearance, this model is much more interesting modest B600 ver.2. Even a cursory examination is possible to note some of the design elements: decorative on the side faces of the case, the original form of the fan grill.

In addition, all cords G550M provided with additional braid, so that the whole G550M looks very respectable.

Testing three power supply 550 W: Cooler Master G550M, Cooler Master V550 and Chieftec BPS-550C2

However, the outlook for BP is not important. Importantly combination of modular design and standard dimensions – such is not as common. Typically, for extra fee assembly manufacturers have to increase the length of the body, the same model is inscribed in a regular ATX-format – 149 x 139 x 86 mm. Weight G550M is 1425

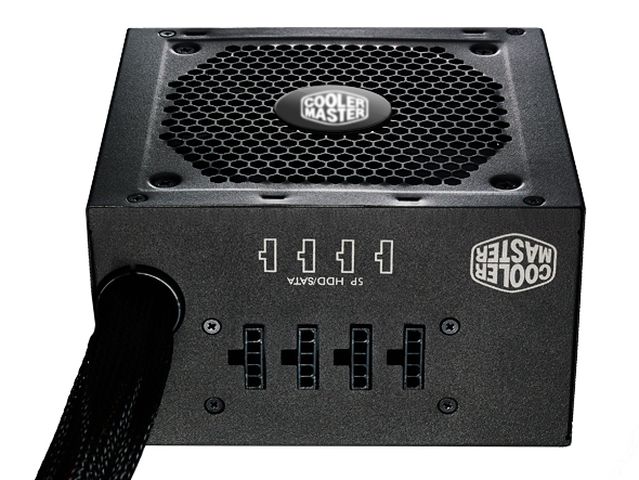

The block is made by the partially modular scheme.

The main cords with connectors ATX Mainboard, CPU and PCI-e left “permanent”, but power cables periphery made optional.

The model is equipped with a standard seven-bladed G550M fan size 120 x 25 mm – like (number of blades and the shape of the impeller) turntable mounted on many of the decisions of the middle class.

Grille covering the fan is permanent – stamped directly into the cell wall of the PSU.

We turn to the performance characteristics. Line 12 is one (not divided into additional channels – and that’s a plus), the current drawn from it may reach 42 A, which corresponds to the power of 504 watts. With respect to the claimed nominal unit rate is 91.6% – not bad!

The strength of the current lines of 3.3 V and 5 V is limited to 20 A total load – 100 watts. The unit is certified according to the standard 80 Plus Bronze.

The length of the cords with connectors ATX Mainboard 20 + 4-pin and the CPU 4 + 4-pin 450 and 500 mm. Please note – both connectors components, which should ensure compatibility with the different types of power supply motherboard.

Unit is equipped with two connectors PCI-e 6 + 2-pin, mounted on a cord length of 550 mm. It is very suitable for the model set capacity of 550 watts. Quality PSU this category must provide the system with top-end single GPU, but the ligament SLI / CrossFire they obviously can not handle.

Unplug the power connector from the periphery in the form of a ribbon cable. The block has six x SATA (two cord length 850 mm), three and one Molex Floppy (cord length 750 mm).

So, Cooler Master G550M makes a good impression. For its price range, the device has a very solid power characteristics, besides this model is implemented in a modular scheme (that among the 550-watt power supply of the middle class is uncommon).

Review of Cooler Master V550 (RS-550-AMAA-G1)

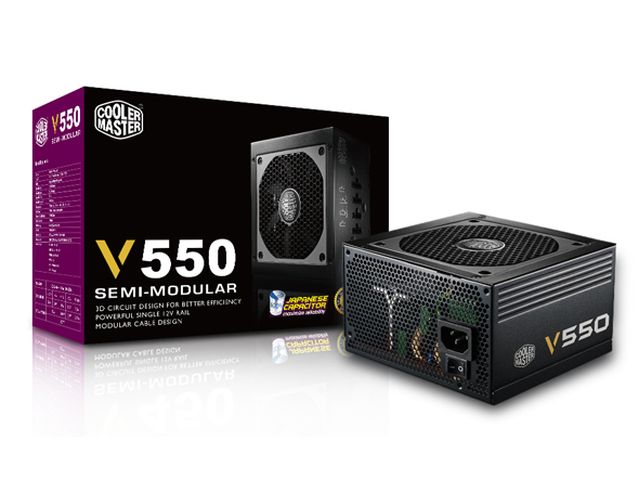

Package sizes of the two products are identical Cooler Master – 265 x 195 x 110 mm. But the design is markedly different:

Testing three power supply 550 W: Cooler Master G550M, Cooler Master V550 and Chieftec BPS-550C2

However, this did not affect the information content, the box contained all the necessary information: a description of the block table of characteristics and the list of connectors.

Packed this model, as well as the low solution – Cooler Master professionals, prefer to use to protect the body from extra soft cardboard box:

Scope of supply does not differ from that of the G550M: manual, power cord, mounting screws. As mentioned above, this kind of standard.

Testing three power supply 550 W: Cooler Master G550M, Cooler Master V550 and Chieftec BPS-550C2

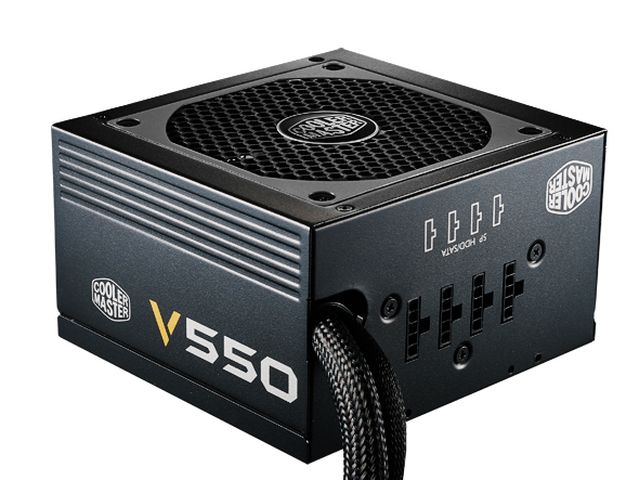

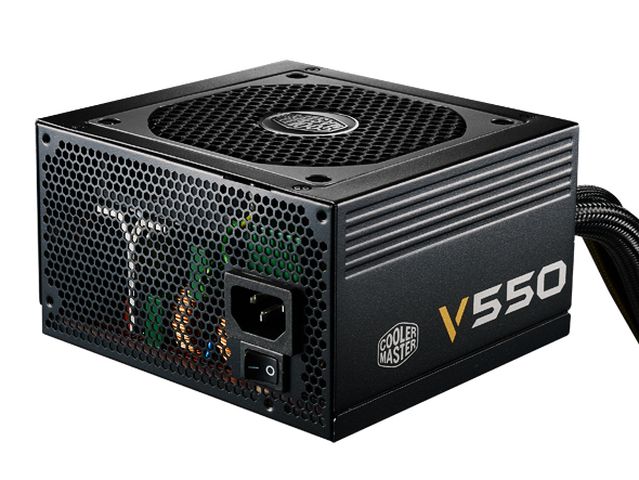

By design, this model is very similar to the older blocks their line (previously we saw Cooler Master V750 and V850), but in a “smaller scale”. Main features of the device outside of the series – light gray metal frame fan grill.

The very same body is almost the same as the model G550M. This means that we can note the same design features: standard size (149 x 139 x 86 mm) and partly modular design (switchable are only cords with connectors periphery).

The mass of the block is 1510

V550 is equipped with a seven-bladed fan size 120 x 25 mm (in the form of the impeller vane and G550M V550 are very similar).

As one would expect, on the performance characteristics of the “gold” unit clearly superior “bronze”. Line 12 also in this case is not divided into the virtual channels. The maximum current is 45 A (against 42 And G55M), which corresponds to the power of 540 watts. The figure is close to the ideal – 98.2% of the declared capacity of the PSU.

The current in the channels 3.3 V and 5 V is limited to 20 A maximum total load – 100 watts. The unit is certified according to the standard 80 Plus Gold.

The length of the cords with connectors ATX Mainboard 20 + 4-pin and the CPU 4 + 4-pin 450 and 500 mm.

Two connectors PCI-e 6 + 2-pin mounted on a cord length of 550 mm.

Testing three power supply 550 W: Cooler Master G550M, Cooler Master V550 and Chieftec BPS-550C2

To power the periphery are encouraged to use the six x SATA (cord length 800 mm), three and one Molex Floppy (mounted on a common string of length 750 mm).

Curiously – recruitment connectors “gold” and “bronze” blocks were completely identical (up to shape and length of cords). However, it can hardly be counted as “minus” the more expensive model – rather, it is an additional plus for the G550M, which proved to be very well equipped.

Such a large number of connectors should be enough even for the “advanced” home PC with this level of consumption. Perhaps the only PCI-e connectors have a more expensive unit could be more – four. Declared power characteristics would be enough for some systems with a pair of graphics cards. However, in this segment of such a set is found only rarely.

Overall, the model V550 makes a great impression. First of all – thanks to the very high power characteristics and modular design. Go to the next party testing.

Review Chieftec BPS-550C2

Units in this series (NTRO2 85+) also figured in previous reviews, so that the design of the package already familiar to us.

Unfortunately, this time to praise informative not work. The box is used for several PSU (note the side edge of the package – here is a list of five models), so that it provides only the most general information about the entire line. Lacks specifics – not even a table of power characteristics.

Testing three power supply 550 W: Cooler Master G550M, Cooler Master V550 and Chieftec BPS-550C2

But packed unit is very reliable and accurate. The housing is protected by a dense pack of bubble wrap, cables, rolled into a tight tourniquet, play the role of additional mitigating element.

The box showed up a cloth bag with a drawstring, which is convenient to store the cords are not used to build the system. The rest of the package is the same as that of blocks Cooler Master – manual, power cable, mounting screws.

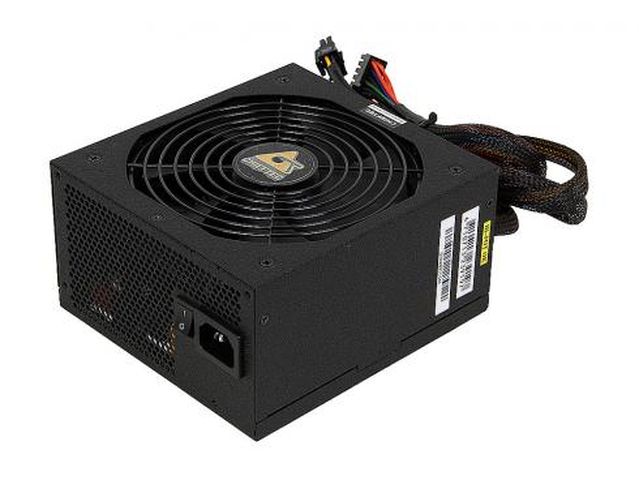

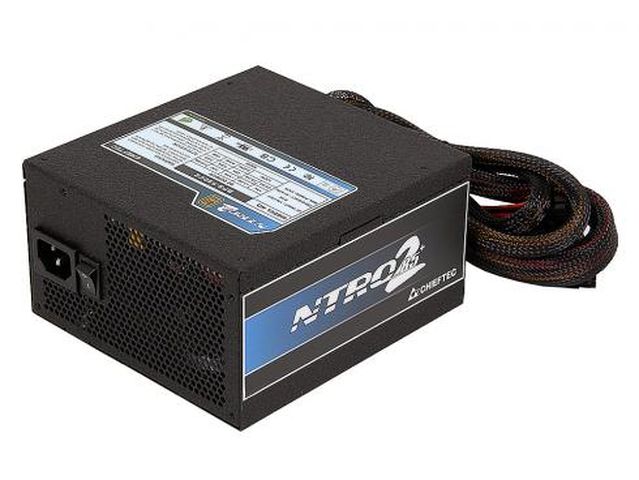

In appearance the unit is different from the older 850-watt model.

Looks very good, but this dimension for 550-ki is surprising. 159 x 149 x 86 mm – length of the body is increased by 20 mm, which in this category cardinality is quite rare. When you purchase the unit should use caution, especially if you plan to use the device as part of a compact PC. Weight BPS-550C2 – 1910

Like the other two participants with an overview, this model is made by partially modular scheme. It should be noted that there are-canceling and cords with connectors PCI-e (rivals – only cables with connectors periphery).

Testing three power supply 550 W: Cooler Master G550M, Cooler Master V550 and Chieftec BPS-550C2

Large body allowed designers to use the chopper Chieftec size 135 x 25 mm. Theoretically, this is a significant advantage (in comparison with the usual “stodvadtsatkoy” such a fan can provide better performance at a lower noise level – at least in some modes), but in practice it all depends on the setting of the rotational speed, so do not get ahead of ourselves.

Grille covering the fan, can not be removed without disassembling the body due to the nature of fastening.

Consider the power characteristics. According to the load capacity of the line unit 12 was equal to the “golden» Cooler Master V550.The same 540 watts (98.2% of the nominal value) – an excellent result!

The strength of the current lines of 3.3 V and 5 V can reach 25 A limitation on the total load – 130 watts. Unit is certified according to the standard 80 Plus Bronze.

When considering a set of connectors surprised me that there are two connectors CPU 4 + 4-pin. This is usually equipped with a very powerful unit that can be used in dual-processor system, or in conjunction with the motherboard for extreme “nitrogen” overclocking. Modest 550-watt model is clearly not intended. Most likely, the matter of unification of production, in the same way and are equipped with the older, much more powerful units in this series. The length of the cord to the power connector of the processor – 550 mm.

The length of the cable to the connector ATX Mainboard 20 + 4-pin and 550 mm.

As both a competitor unit is equipped with a pair of slots PCI-e 6 + 2-pin. In this case, they are mounted on two cord length of 650 mm.

Testing three power supply 550 W: Cooler Master G550M, Cooler Master V550 and Chieftec BPS-550C2

On a set of connectors for peripherals BPS-550C2 was also very similar to the products of Cooler Master: six SATA (cord length 650 mm); four and one Molex Floppy (cord length 750 and 900 mm).

Thus, when the external examination this unit makes a positive impression. Of special note is the very high power characteristics stated (especially by the standards of “bronze” models in this category). Less construction – increased size, which can be an obstacle to the use of the unit in a compact package.

Conclusion

We begin, as usual, by listing the pros and cons of the blocks. Lists for the two products Cooler Master were almost identical.

Cooler Master G550M

Pros:

  • High power characteristics (maximum load when tested our technique – not less than 500 W);
  • Low noise in all modes;
  • High rate of efficiency (for this category of devices) – 84-88%;
  • Good quality stabilization;
  • All necessary connectors on system performance of a single GPU;
  • Modular design.

Cons:

  • Significant deficiencies were observed.

Cooler Master V550

Pros:

  • High power characteristics (maximum load when tested our technique – not less than 500 W);
  • Excellent noise characteristics (unit difficult to hear at all levels of activity);
  • Very high rate of efficiency (88-92%);
  • Good quality stabilization;
  • All necessary connectors on system performance of a single GPU;
  • Modular design.

Cons:

  • Significant deficiencies were observed.

Model Chieftec BPS-550C2 differs from its rivals in the noise characteristics.

Chieftec BPS-550C2

Pros:

  • High power characteristics (maximum load when tested our technique – not less than 500 W);
  • High rate of efficiency (for this category of devices) – 85-88%;
  • Very high quality stabilization;
  • All necessary connectors on system performance of a single GPU;
  • Modular design.

Cons:

  • High noise levels at a load of 300-350 W;
  • Non-standard housing dimensions (length increased by 20 mm).

Now let’s summarize and describe the first product Chieftec. Blocks like BPS-550C2, we have seen more than once: successful on a number of characteristics of the device is very noisy, which drastically reduces the overall assessment. This model has already heard at 200-250 W, and 350 W after begins now “buzz.” It should be noted that it is unlikely such a high speed fan is really needed – a large 135 mm spinner perfectly “blows” and the block at 1000 rev / min. Most likely, the designers have simply decided to play it safe. As a result – you can use this model except that in the really noisy game system, where BP will overpower the other, more “loud” components.

Cooler Master G550M fought hard with rivals in its category (BP-certified 80 Plus Bronze). The most serious opponent was the Chieftec APS-550CB. In comparison with this model G550M showed significantly better quality of stabilization, a similar level of efficiency and noise characteristics. So this is a very good “bronze” block, which can be recommended for use in gaming systems of the middle class.

Cooler Master V550 surpassed junior solution in all disciplines testing (considerably – in terms of efficiency, less visible – the quality stabilization and noise level). There is nothing to add: on a set of characteristics is the best studied of the currently 550-watt models.
