Review PSU AeroCool KCAS-650M: reasonable minimum

Power supplies AeroCool branded products KCAS among well-known companies belongs to the affordable price range, but they have all the signs of quality PSU. Fill up a series of recent models with indices of different modular cabling and have a capacity of 650, 750, 850 and 1000 watts. Today we look at the younger, 650-watt modification.

AeroCool KCAS-650M 650 W rated power can give 624 watts + 12V line. Lines 5 and 3.3 have to share ration of 130 watts.

Extremely cheap blocks AeroCool KCAS, of course, will not name. At PSU power 650W found prices and less than 3 700 rub., Which for KCAS-650M on average asking in Moscow online stores. But this is, at best, and FSP Chieftec without modular cables, and even some no-name. However, the more interesting – what can we expect in terms of circuitry from the PSU, balancing on that thin line, and if all is well between him and the parameters of output voltages.

As can be seen in the table, other members of the line KCAS modular connecting cables also highlighted the low price of power in their respective categories. However KCAS-850M and KCAS-1000M built on a different hardware platform, rather than KCAS-650M and KCAS-750M. In particular, older models use a DC-DC converters to generate a voltage of 5 V and 3.3 V.

Manufacturer AeroCool
Model KCAS-650M KCAS-750M KCAS-850M KCAS-1000M
Connecting cables Partially modular Partially modular Partially modular Partially modular
Maximum power load, W 650 750 850 1000
80 PLUS Certification 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Bronze
ATX version ATX12V 2.4 ATX12V 2.4 ATX12V 2.4 ATX12V 2.4
Type of power supply 200-240 V, 10 A, 47-53 Hz 200-240 V, 10 A, 47-53 Hz 200-240 V, 10 A, 47-53 Hz 200-240 V, 10 A, 47-53 Hz
Efficiency + 85% + 85% + 85% + 85%
PFC Active Active Active Active
Load protection UVP (undervoltage)
OVP (overvoltage protection)
OCP (over current protection)
OPP (protection against abuses of power)
OTP (overtemperature protection)
SCP (Short Circuit Protection)
UVP (under voltage)
OVP (overvoltage protection)
OCP (over current protection)
OPP (protection against abuses of power)
OTP (overtemperature protection)
SCP (Short Circuit Protection)
UVP (under voltage)
OVP (overvoltage protection)
OCP (over current protection)
OPP (protection against abuses of power)
OTP (overtemperature protection)
SCP (Short Circuit Protection)
UVP (under voltage)
OVP (overvoltage protection)
OCP (over current protection)
OPP (protection against abuses of power)
OTP (overtemperature protection)
SCP (Short Circuit Protection)
Dimensions, mm 160 × 150 × 75 ND ND ND
Weight, kg ND ND ND ND
Mean time between failures (MTBF), h ND ND ND ND
Warranty period, years ND ND ND ND



To the power supply attached the minimum necessary accessory own cable to connect consumers current, power cable, manual and brief paper set screws for mounting in the enclosure.

Cable economy is the next set of connectors:

  • 1 × 24 (20 + 4) contact;
  • 1 × 8 (4 + 4) contacts (power CPU);
  • 2 × 8 (6 + 2) contacts (additional power board PCIe);
  • 7 × SATA;
  • 4 × Molex;
  • 1 × Floppy.

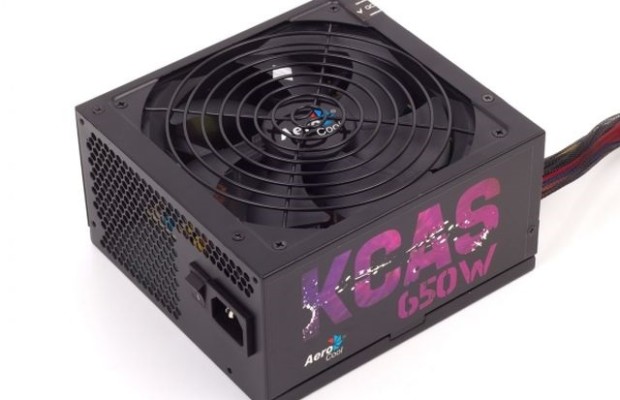

AeroCool KCAS-650M: Design

The power supply looks quite decent for its price. Body paint has a toggle switch on / off, without which it would be possible to do.Saving detected only by touch: metal body is quite thin.

Review PSU AeroCool KCAS-650M: reasonable minimum

All cables in addition to the 24-pin ATX cable and 8-pin power cable CPU (and adapter with Molex power connector on the floppy drive), covered with nylon mesh. The wires in the cable, in addition, to have normal section (AWG 18).

AeroCool KCAS-650M: Internals

BP is responsible for the cooling fan Yong Lin DFS132512H size 135 mm on ball bearings. The maximum rotational speed – 1700 r / min.

Circuitry in AeroCool KCAS-650M is simple, time-tested. Manufacturer boards – the company HEC Group. Sophisticated technical solutions, which are used in more expensive power supply in the fight for “gold” or “platinum” certification 80 PLUS, is not found, but all the necessary components in place, and even something beyond that.

Part of the EMI filter on a separate board, attached to the power connector. Differential interference suppression unit includes two capacitors CX, link common-mode rejection – two chokes and four capacitor CY. Unlike many budget and some of the more expensive power supply in AeroCool KCAS-650M is an element of protection against surge, not a varistor, as happens more often, and a zener diode. And, of course, the fuse.

Review PSU AeroCool KCAS-650M: reasonable minimum

The rectifier is designed as a diode assembly in a single body with ample par value of current – 10 A, only without the radiator.

There is a block of active power factor correction, although it is implied by default for a modern PSU. The main voltage converter is built on a forward topology with two switching transistors.

Rectifiers in the secondary circuit contains a total of eight assemblies Schottky diodes. Four assembly line work for 12, two – for 5V Line 3.3 also has its own rectifier assemblies of the two, although the secondary winding of the transformer divides the line 5 V. Here, too, could save and use one rectifier tire 5 and 3.3, but have chosen a more solid pattern.

Output voltage stabilization is done the traditional way – on buses 12 and 5 hanging choke group stabilization. Bus 3.3 is controlled throttle saturable core.

In ripple filters are Taiwanese electrolytic capacitors production Teapo, enjoying a good reputation. Capacity in the circuits 12 and 5 of 4400 uF circuit 3.3 – 2200 uF. That should be enough.

AeroCool KCAS-650M: Test Procedure

In addition to these tests, there is measured ripple at the output of the PSU with an oscilloscope Hantec 6022BE, as well as the fan speed at different loads by means of a tachometer Dr. Meter DT2234A.

AeroCool KCAS-650M: Test Results

Bus voltage 12 V adheres to par with a deviation of not more than 3% at any load distribution. Similarly tire behaves 3.3, which fit in the deviation of 4%. But the bus is 5 pumped. If the current flows mainly through it, something closer to the stated bus power 130 W power goes beyond the allowable range of 5% of the nominal value. On the bus 3.3, on the other hand, a full order.

Efficiency unit ideally meets 80 PLUS Bronze.

Review PSU AeroCool KCAS-650M: reasonable minimum

High frequency ripple on the buses 12 and 5 do not exceed 40 and 10 mV, respectively. Great result, since ATX12V specification restricts the ripple of 120 and 50 mV.

Frequency ripple at twice the mains frequency (50 Hz), to break through the primary circuit of the PSU, have greater scope (about 45 mV to bus 12 and 20 mV – 5 V bus), but still within tolerance.

With a load of up to 40% of the nominal power PSU fan running at low revs. Then, as the rotation speed increase power increases almost linearly. However, the cooler here nizokooborotny itself, so even at maximum load speed is not too large, as well as noise.

AeroCool KCAS-650M: Conclusions

If you choose BP computer with a single graphics card, guided by practical considerations, the AeroCool KCAS-650M has to do all the necessary qualities. Good, but not exorbitant efficiency? There Is. Low ripple at the output? There Is. Surge Protection at the entrance?There Is. The kit includes only the cables you need, but the braided cable and modular plug. Fan – large and quiet. And all this – for a small price compared to the more heaped PSU with the same capacity.

Review PSU AeroCool KCAS-650M: reasonable minimum updated: March 4, 2015 author: John Malkovich
